CT-805932
加入購物車
2D下載

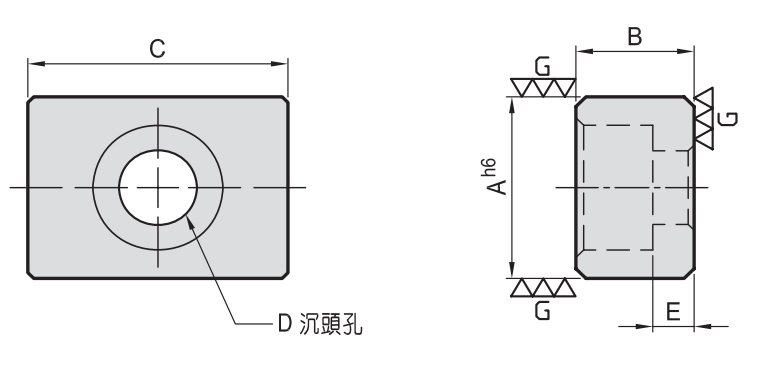

訂貨編號 | A | B | C | D | E | KG |
CT-805932 | 10 | 8 | 20 | M4 | 3.5 | 0.015 |
產品規格
| MODEL NO | 長 | 寬 | 高 | KG | 2D | 3D | ||||||||||||||
|
CT-805932 |
20 | 10 | 8 | 0.015 |
download
|
download
|
||||||||||||||
|
CT-805933
CT-805933
|
20 | 12 | 8 | 0.019 |
download
|
download
|
||||||||||||||
|
CT-805934
CT-805934
|
22 | 14 | 10 | 0.020 |
download
|
download
|
||||||||||||||
|
CT-805935
CT-805935
|
22 | 16 | 10 | 0.020 |
download
|
download
|
||||||||||||||
|
CT-805936
CT-805936
|
22 | 18 | 10 | 0.025 |
download
|
download
|
||||||||||||||
|
CT-805937
CT-805937
|
22 | 20 | 10 | 0.025 |
download
|
download
|
||||||||||||||
|
CT-805938
CT-805938
|
22 | 22 | 10 | 0.030 |
download
|
download
|

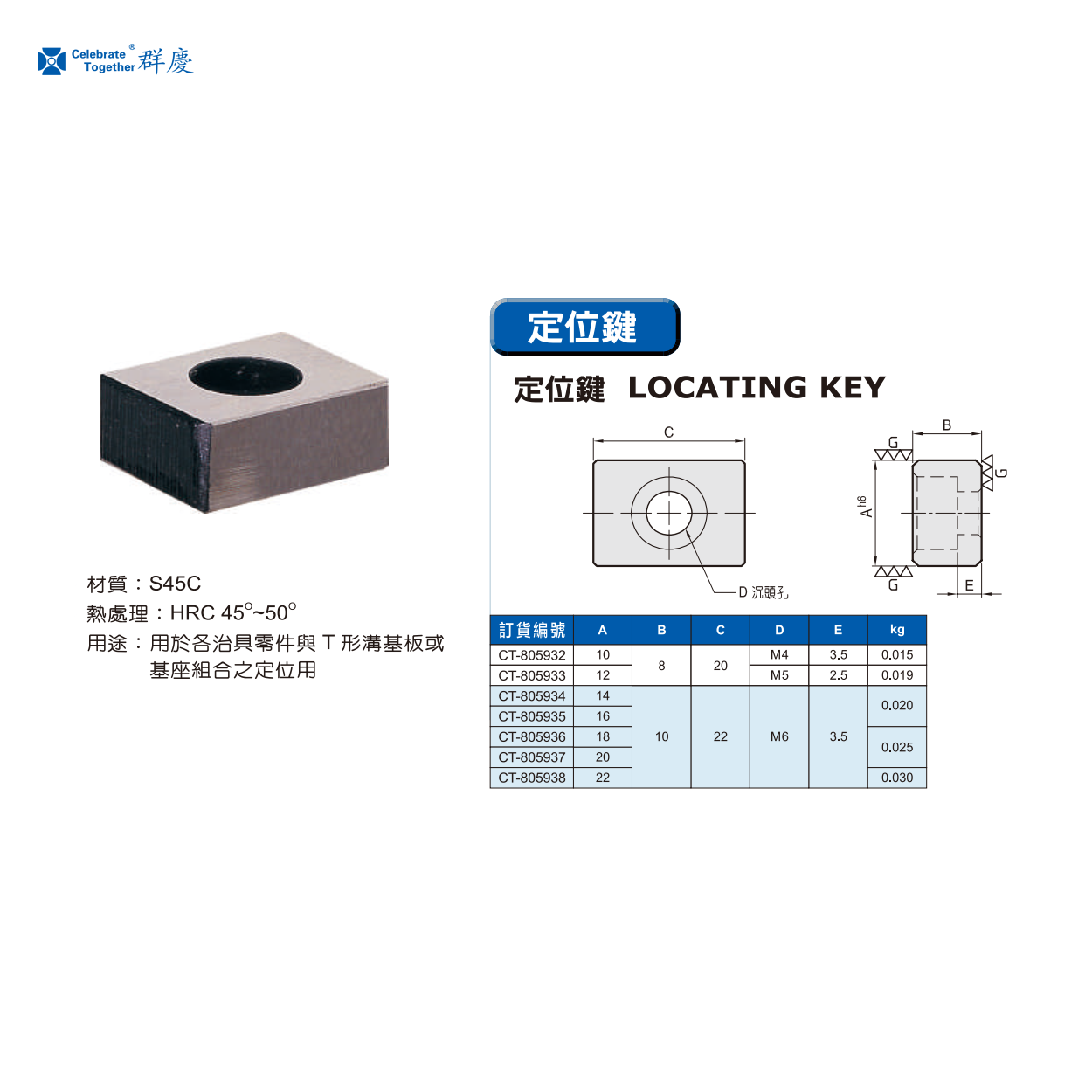

產品概述
材質 | 熱處理 | 用途 | |||
S45C | HRC 45°~50° | 用于各治具零件與 T形溝鞍板或鞍座組合之定位用 | |||
